Features and Benefits of our Desiccant Air Dryers:


  • A heavy-duty, skid-mounted portable design for indoor or outdoor installation and field application
  • Rugged design for rental fleets market
  • Instrument quality air with Adjustable flow requirements and pressure dew point
  • Remove moisture that can lead to rust, corrosion, ice buildup, contaminants, and wear and tear of moving compressor parts
  • Special paint coating for extreme outdoor and coastal environments
  • Forklift holes and lifting lugs for easy transportation
  • Fabricated with dimensions to fit on trucks and in ISO (Conex containers)
  • Optional Romar ALL STEEL Silencer vs. standard muffler (Patent Pending)
  • NEMA 4X, 115/1/60 electrics suitable for outdoor operation
  • Single-point electrical connection via cord set (less than two amps)
  • Hour meter and easy plug-and-play installation
  • Dryer/After Cooler combo available on some designs
  • IDEC smart relay in control board
  • Dew points of -40°F to -100°F
  • Low pressure or high pressure design on most models

ROMAR’s ALL STEEL Silencer vs. most other’s Standard Muffler

Patent Pending. Quieter, tougher and stronger to stand up in the field! Virtually no maintenance is needed and there are virtually no replacement costs!


FILTRATION

Romar Air Dryers have three levels of filtration to meet compressed air quality standards:

  • Water Separator Coarse Pre-filter: Specially designed for the efficient removal of bulk liquid contamination from compressed air. 1.0μ to remove moisture and oil*
  • Fine Pre-filter: .01micron to remove moisture and oil, protects dryer desiccant from contamination*
  • After-filter: 1.0 micron, removes particulates, protects downstream equipment.
    *use float drain

BASIC CONTROLLER FEATURES

  • Nema 4X enclosure
  • LCD user interface
  • Four line digital display features
    1) Tower drying cycle
    2) Tower regenerating indication
    3) Run status
    4) Time remaining in cycle
  • Selectable cycle settings
  • Power ON/OFF switch

Custom Colors Are Available! Let Us Know What You Prefer!

Colors are important to supporting a company’s brand. Our air dryers offer custom solutions depending on your need and the same is true with the appearance. Custom colors are available. Just let us know how we can help you. (Click on the thumbnails below to see a larger image)

PORTABLE FILTER PACKAGE

MODEL F5400

High Efficiency Filters – removes aerosols and solids to .01 micron (.01 ppm w/w maximum remaining oil content). Drains automatic with manual adjustment.

Model F5400 - Inlet Conditions
Flow (CFM)5400 CFM @ 100 PSIG
Maximum Inlet Pressure165 PSIG
Maximum inlet temperature120 degree F

Model F5400 - Outlet Conditions
Removal of solid particles1 Micron (or .01 Micron Option)
Removal of oil vapor1 PPM (or .01 PPM Option)
Dimensions: L/W/H71” x 38” x 84”
In & Out ConnectionsInlet (4) 3” Boss
Outlet (4) 3” Boss
Weight1,800 lb.

AVAILABLE MODELS

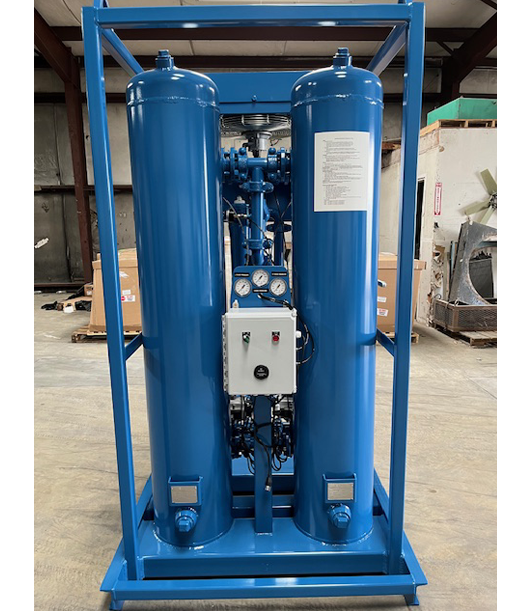

ROMAR 450LP (250psi)

(with aftercooler)

RD450 - Technical Information
Flowrate @ 100psi g (scfm)Dryer Air In/OutMax. Operating Pressure - psiMax. Operating Pressure - bar
4502" NPT250(17)

RD450 - Dimensions
HeightWidthDepthWeight
inmminmminmmlbskg
8321084711937118032200998

RD450 - Temperatures
Max. Inlet Compressed Air TemperatureMin. Ambient TemperatureMax. Ambient Temperature
120(49)40(4)105(41)

RD450 - Electrical Parameters
Power Supply120v/1ph/60Hz

RD1000 - Technical Information
Flowrate @ 100psi g (scfm)Dryer Air In/OutMax. Operating Pressure - psiMax. Operating Pressure - bar
10003" NPT250(17)

RD1000 - Dimensions
HeightWidthDepthWeight
inmminmminmmlbskg
83210870177874187945002041

RD1000 - Temperatures
Max. Inlet Compressed Air TemperatureMin. Ambient TemperatureMax. Ambient Temperature
120(49)40(4)105(41)

RD1000 - Electrical Parameters
Power Supply120v/1ph/60Hz

ROMAR 1000LP (250psi)

(with or without aftercooler)

ROMAR 1000HP (350psi)

(with or without aftercooler)

RDH1000 - Technical Information
Flowrate @ 100psi g (scfm)Dryer Air In/OutMax. Operating Pressure - psiMax. Operating Pressure - bar
10003" NPT350(23.80)

RDH1000 - Dimensions
HeightWidthDepthWeight
inmminmminmmlbskg
83210870177874187945002041

RDH1000 - Temperatures
Max. Inlet Compressed Air TemperatureMin. Ambient TemperatureMax. Ambient Temperature
120(49)40(4)105(41)

RDH1000 - Electrical Parameters
Power Supply120v/1ph/60Hz

RDUH1000 - Technical Information
Flowrate @ 100psi g (scfm)Dryer Air In/OutMax. Operating Pressure - psiMax. Operating Pressure - bar
10003" NPT500(34.47)

RDUH1000 - Dimensions
HeightWidthDepthWeight
inmminmminmmlbskg
83210870177874187945002041

RDUH1000 - Temperatures
Max. Inlet Compressed Air TemperatureMin. Ambient TemperatureMax. Ambient Temperature
120(49)40(4)105(41)

RDUH1000 - Electrical Parameters
Power Supply120v/1ph/60Hz

ROMAR 1000UHP (500psi)
ROMAR 1600LP (250psi)

(with or without aftercooler)

RD1600 - Technical Information
Flowrate @ 100psi g (scfm)Dryer Air In/OutMax. Operating Pressure - psiMax. Operating Pressure - bar
16003" NPT250(17)

RD1600 - Dimensions
HeightWidthDepthWeight
inmminmminmmlbskg
88.75225481.5207075.75192450002267

RD1600 - Temperatures
Max. Inlet Compressed Air TemperatureMin. Ambient TemperatureMax. Ambient Temperature
120(49)40(4)105(41)

RD1600 - Electrical Parameters
Power Supply120v/1ph/60Hz

RDH1600 - Technical Information
Flowrate @ 100psi g (scfm)Dryer Air In/OutMax. Operating Pressure - psiMax. Operating Pressure - bar
16003" NPT350(23.80)

RDH1600 - Dimensions
HeightWidthDepthWeight
inmminmminmmlbskg
88.75225481.5207075.75192450002267

RDH1600 - Temperatures
Max. Inlet Compressed Air TemperatureMin. Ambient TemperatureMax. Ambient Temperature
120(49)40(4)105(41)

RDH1600 - Electrical Parameters
Power Supply120v/1ph/60Hz

ROMAR 1600HP (350psi)

(with or without aftercooler)

ROMAR 3000LP (150psi)

RD3000 - Technical Information
Flowrate @ 100psi g (scfm)Dryer Air In/OutMax. Operating Pressure - psiMax. Operating Pressure - bar
30003" NPT/4"FLg175(11.90)

RD3000 - Dimensions
HeightWidthDepthWeight
inmminmminmmlbskg
86.52197902286115.5293392004173

RD3000 - Temperatures
Max. Inlet Compressed Air TemperatureMin. Ambient TemperatureMax. Ambient Temperature
120(49)40(4)105(41)

RD3000 - Electrical Parameters
Power Supply120v/1ph/60Hz

RDH3000 - Technical Information
Flowrate @ 100psi g (scfm)Dryer Air In/OutMax. Operating Pressure - psiMax. Operating Pressure - bar
30003" NPT/4"FLg350(24.13)

RDH3000 - Dimensions
HeightWidthDepthWeight
inmminmminmmlbskg
86.52197902286115.5293392004173

RDH3000 - Temperatures
Max. Inlet Compressed Air TemperatureMin. Ambient TemperatureMax. Ambient Temperature
120(49)40(4)105(41)

RDH3000 - Electrical Parameters
Power Supply120v/1ph/60Hz

ROMAR 3000HP (350psi)
ROMAR 5400HP (150psi)

RD5400 - Technical Information
Flowrate @ 100psi g (scfm)Dryer Air In/OutMax. Operating Pressure - psiMax. Operating Pressure - bar
54003" NPT/6"FLg150(10.34)

RD5400 - Dimensions
HeightWidthDepthWeight
inmminmminmmlbskg
88.522489123111634140160007257

RD5400 - Temperatures
Max. Inlet Compressed Air TemperatureMin. Ambient TemperatureMax. Ambient Temperature
120(49)40(4)105(41)

RD5400 - Electrical Parameters
Power Supply120v/1ph/60Hz

Our commitment is to you and our products. Call Romar Air Dryers today!

We are continually researching innovative ways to improve the efficiency and reliability of our existing line of desiccant air dryers while also looking into the future at what could come next. Our commitment is to our customers, and because of that, we will never stop evolving our products and services to meet your needs. Call Romar Air Dryers today!
